Place of Origin:
Guangdong, China
Brand Name:
NONE
Model Number:
YYG
Contact Us

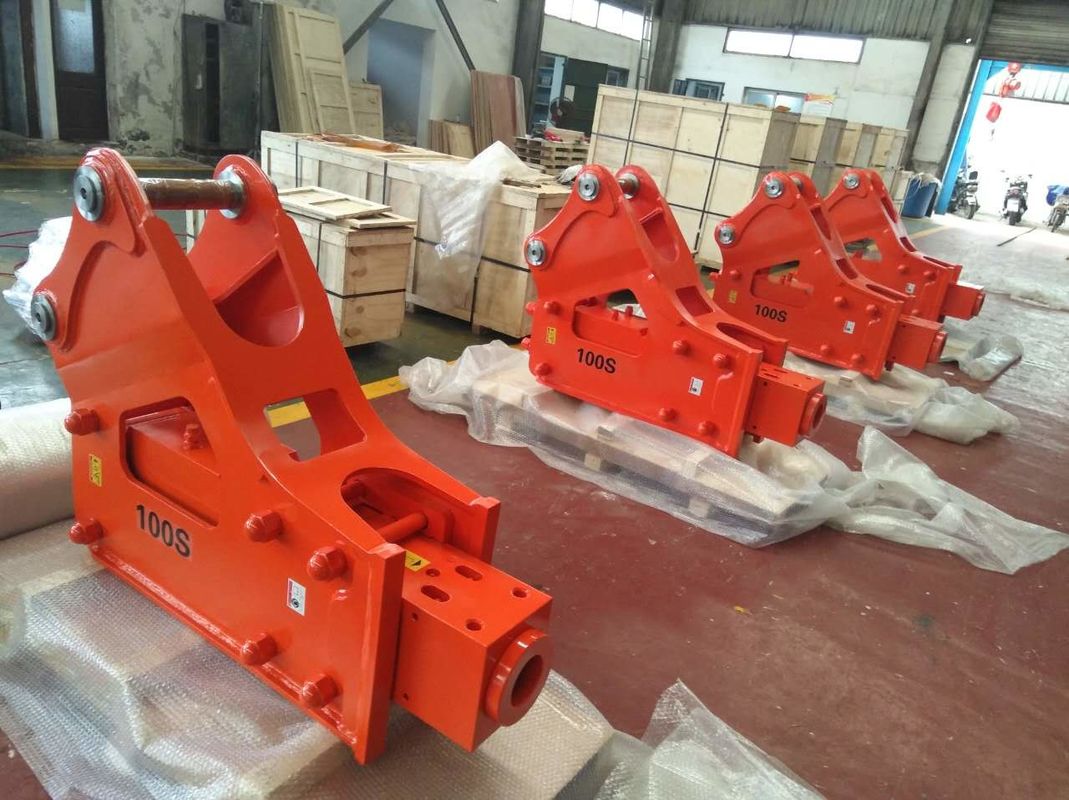

20CrMo Hydraulic Breaker Hammer With Moil Point Chisel For 20 Tons Excavator breaker hammer factory
SpecifiC.A.Tion
| Description | Unit | YGB45 | YGB50 | YGB57 | YGB60 | YGB70 |
| Applicable Carrier | lbs | 15,500-31,000 | 24,500~36,000 | 24,500~36,000 | 33,000~40,000 | 40,000~46,000 |
| ton | 7~14 | 11~16 | 12~16 | 15~18 | 16~21 | |
| Overall Weight | lb | 1124 | 1687 | 1828 | 2767 | 3223 |
| kg | 510 | 765 | 829 | 1255 | 1462 | |
| Overall Length | in | 71.9 | 76.1 | 78 | 86.4 | 90.4 |
| mm | 1827 | 1934 | 1983 | 2195 | 2295 | |
| Required Oil Flow | gal/min | 15.9~26.4 | 21.1~29.1 | 21.1~29.1 | 23.8~31.7 | 26.4~39.6 |
| ℓ/min | 60~100 | 80~110 | 80~110 | 90~120 | 100~150 | |
| Operating Pressure | psi | 1,849~2,276 | 2,134~2,418 | 2,134~2,418 | 2134~2418 | 2276~2560 |
| ㎏/㎠ | 130~160 | 150~170 | 150~170 | 150~170 | 150~170 | |
| Impact Rate | bpm | 400~800 | 350~700 | 400~750 | 350~650 | 350~650 |
| Hose Diameter | inch | 3/4 | 3/4 | 3/4 | 1 | 1 |
| Tool Diameter | in | 3.3 | 3.9 | 3.9 | 4.9 | 4.9 |
| mm | 85 | 100 | 100 | 125 | 125 |
Standard Configurations:
* Chisels x 2 pcs
* Hydraulic Oil Hoses x 2 pcs
* Nitrogen Charging Kit with Pressure Gauge x 1 set
* Nitrogen Bottle x 1 pcs
* Tool Box with necessary maintenance tools x 1 set
* User's Manual x 1 pcs.
AppliC.A.Tion
1.Mining: Mountains, mining, crushing, secondary crushing
2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied
3.Railway, tunnel bridge, mountain down.
4.Highway: highway repair, cement pavement broken, foundation excavation.
5.Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.
6.Building: the old building demolition, reinforced concrete broken.
7.The ship hull in mussels , derusting
8.Other: ice breaking, breaking the permafrost and vibrating sand.
